Codex

Connect OpenAI Codex to the Kloudfuse MCP server. Codex opens your browser for SSO, stores the tokens locally, and the Kloudfuse tools show up alongside Codex’s built-in ones. The Codex desktop app and the CLI share ~/.codex/config.toml, so a server added in one is visible in the other.

In This Topic

Prerequisite
Install the Connector
Verify
Manage the Connector In-App

Prerequisite

An operator has already enabled the connector on your Kloudfuse cluster by following Enable on the Cluster. If you haven’t done that step, codex mcp login (or the first tool call from the app) will fail discovery.

Install the Connector

Pick whichever entry point you use. All three result in the same ~/.codex/config.toml entry.

Codex App
CLI
Config file

Open the Codex desktop app.
Click Settings and select MCP servers from the left sidebar.

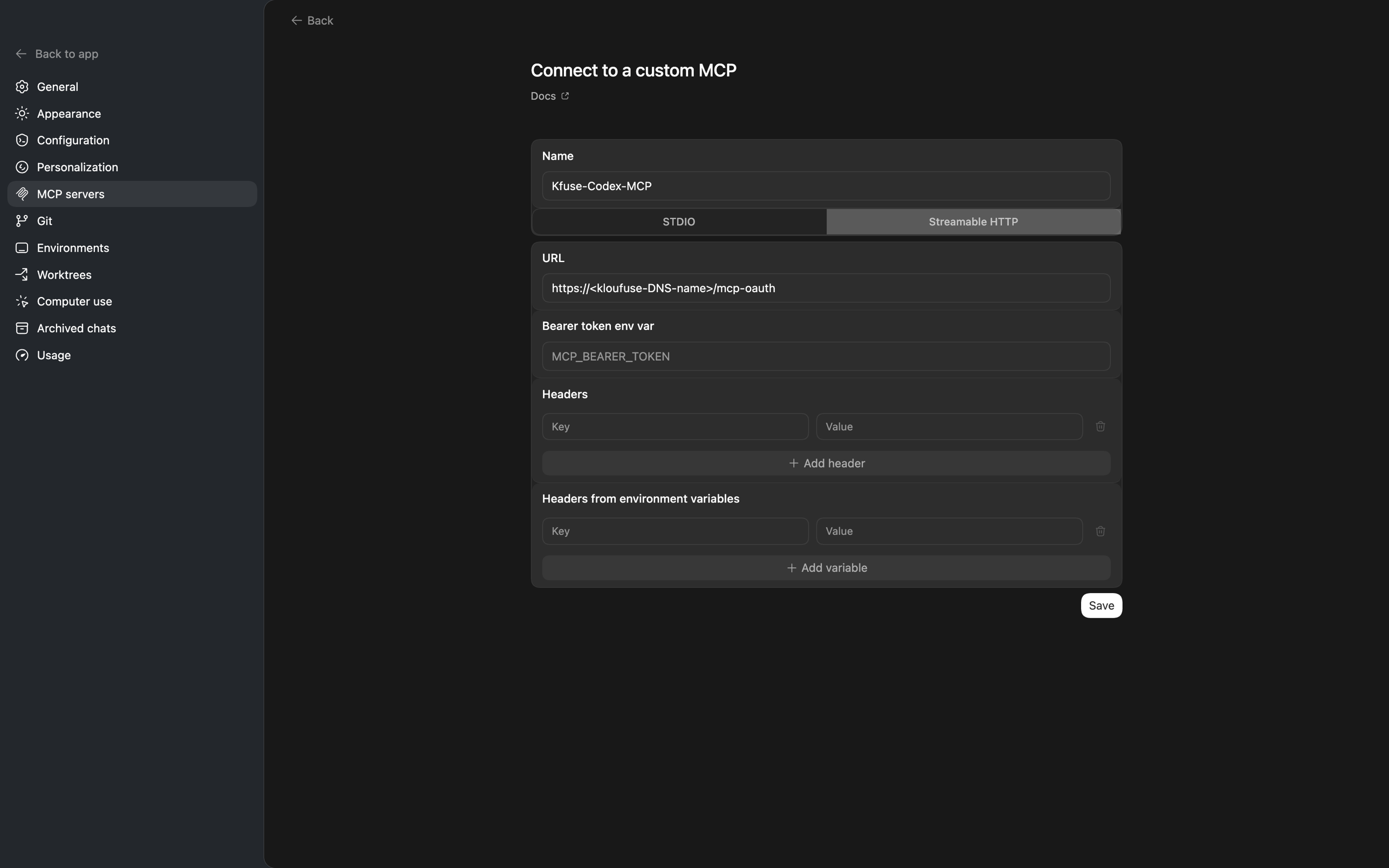

Click Add (or the equivalent "New server" button) to open the Connect to a custom MCP form:

Fill in the fields:

Field Value

Field	Value
Name	Any friendly identifier, e.g. `kfuse` or `Kfuse-Codex-MCP`. This is the server handle you will pass to `codex mcp login <name>` in the next step, so remember what you typed here.
Transport	Select Streamable HTTP
URL	`https://<KLOUDFUSE_URL>/mcp`
Bearer token env var	Leave empty — Kloudfuse uses OAuth, not a static bearer token
Headers	Leave empty
Headers from environment variables	Leave empty

Name

Any friendly identifier, e.g. kfuse or Kfuse-Codex-MCP. This is the server handle you will pass to codex mcp login <name> in the next step, so remember what you typed here.

Transport

Select Streamable HTTP

URL

https://<KLOUDFUSE_URL>/mcp

Bearer token env var

Leave empty — Kloudfuse uses OAuth, not a static bearer token

Headers

Leave empty

Headers from environment variables

Leave empty

Click Save.
Authenticate. Codex prompts for SSO on the first tool call, or you can trigger it immediately from a terminal — replace <name> with whatever you typed in the Name field above:
```
codex mcp login <name>
```
bash

STDIO is for local-process MCP servers. Kloudfuse runs remotely, so always pick Streamable HTTP.

codex mcp add kfuse --url https://<KLOUDFUSE_URL>/mcp
codex mcp login kfuse

bash

Codex opens a browser for SSO. On success, tokens are stored locally and Codex exits back to the shell.

Edit ~/.codex/config.toml directly:

[mcp_servers.kfuse]
enabled = true
url = "https://<KLOUDFUSE_URL>/mcp"

toml

Then authenticate from the terminal:

codex mcp login kfuse

bash

Verify

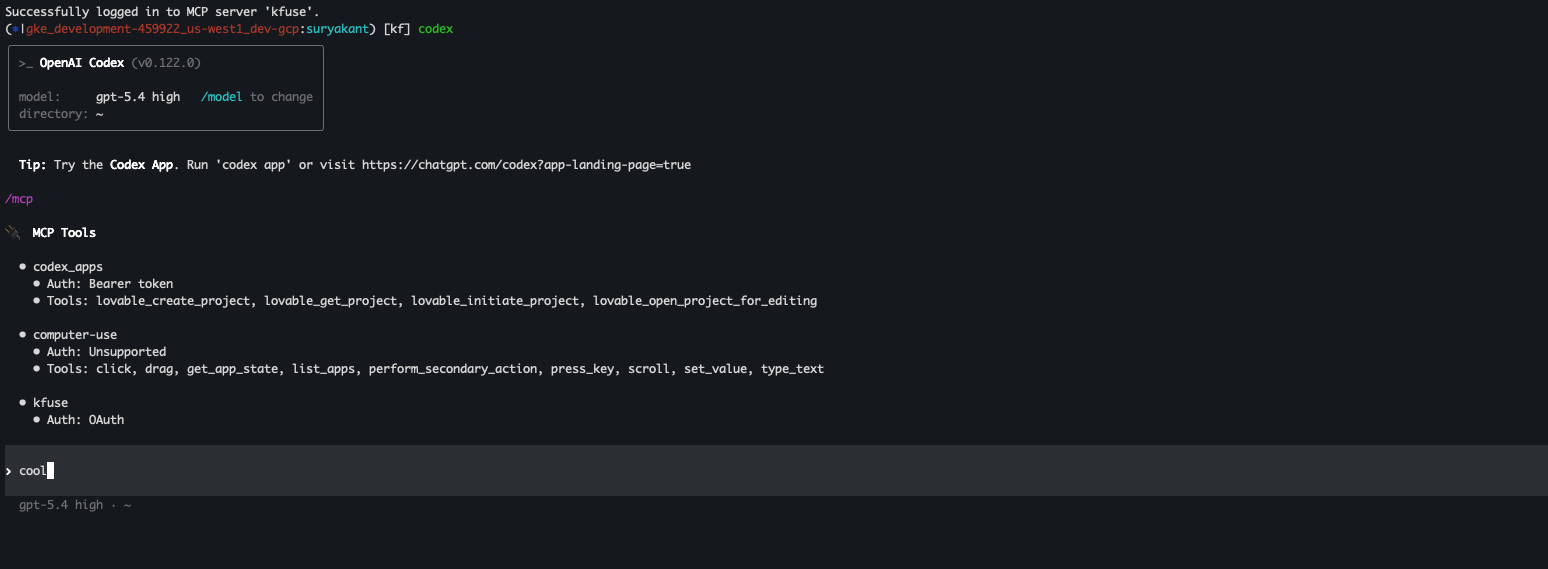

Start Codex and run /mcp in the TUI. The Kloudfuse server should appear with Auth: OAuth and the full tool list:

Codex /mcp showing kfuse with Auth: OAuth

Manage the Connector In-App

Codex exposes several commands to manage the connector once configured. Replace <name> with the identifier you chose when adding the server (for example kfuse):

codex mcp list — show every configured MCP server and its status.
codex mcp get <name> — print the stored config for this entry.
codex mcp login <name> — re-run the SSO flow (use this if the token expires or you switch identities).
codex mcp remove <name> — delete the server entry and cached tokens.

You can also restrict which Kloudfuse tools Codex is allowed to call by editing ~/.codex/config.toml:

[mcp_servers.kfuse]
url = "https://<KLOUDFUSE_URL>/mcp"
enabled_tools = ["logs_search", "prometheus_query"]   # allow list
# disabled_tools = ["delete_all_entities"]            # deny list, applied after enabled_tools

toml

Tool allow/deny lists take effect on the next codex launch.
