RUM Custom Facets

Custom facets make custom attributes searchable and visible in the RUM sidebar, enabling you to filter and analyze RUM events based on your application-specific data.

Since creating Custom Facets impact indexing and query performance only an Admin user is currently allowed to add, modify, or delete them.

Overview

By default, custom attributes included in RUM events are stored but not immediately available for filtering in the RUM interface. Creating a custom facet indexes a custom attribute and adds it to the facet sidebar, allowing you to:

  • Filter RUM events by custom attribute values

  • Group and aggregate data by custom attributes in analytics

  • Create monitors and alerts based on custom attribute values

Create a Custom Facet

To create a custom facet from a RUM event:

  1. Navigate to any RUM view (Sessions, Views, Actions, Errors, or Resources) and select an event to view its details.

  2. In the event details, locate the custom attribute you want to promote to a facet.

  3. Click on the custom attribute value (only attributes under usr. or context. can be promoted to a custom facet).

  4. Select Promote to facet from the context menu.

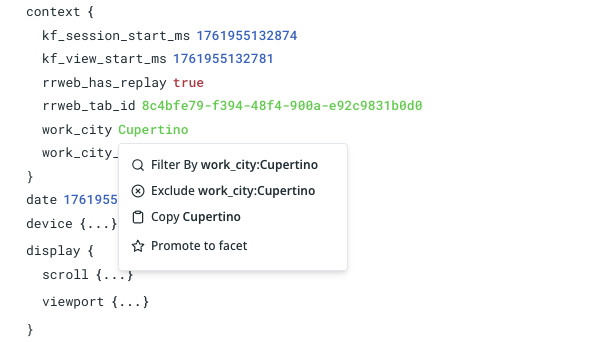

    Promote to facet from context menu

  5. In the dialog that appears, configure the facet properties:

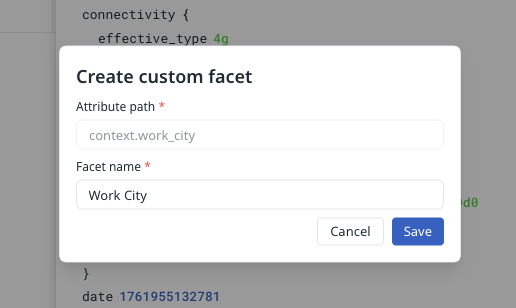

    Create custom facet dialog
    Attribute Path

    Auto-populated with the path to the custom attribute (e.g., context.work_city). This uses dot notation for nested properties.

    Facet Name

    A user-friendly name for the facet that will appear in the RUM sidebar (e.g., "Work City").

  6. Click Save.

The custom facet will appear in the RUM sidebar and become available for filtering and analysis within a minute.

Custom facets in RUM sidebar

Manage Custom Facets

Edit a Facet

To modify an existing custom facets user friendly name:

  1. Navigate to RUM > Custom Facets.

  2. Find the facet you want to edit.

  3. Click the edit icon.

  4. Update the facet properties.

  5. Click Save.

Delete a Facet

To remove a custom facet:

  1. Navigate to RUM > Custom Facets.

  2. Find the facet you want to delete.

  3. Click the delete icon.

  4. Confirm the deletion.

Deleting a custom facet removes it from the RUM sidebar but does not delete the underlying custom attribute data from RUM events.

Considerations

  • Custom facets are available within a few minutes of creation

  • High-cardinality facets (attributes with many unique values) may impact query performance

  • All custom attribute values are stored and indexed as strings

  • Use low-cardinality values for optimal performance
